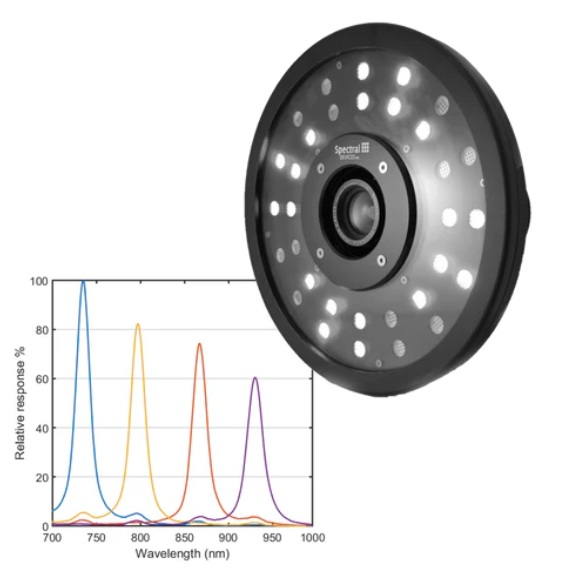

The biomedical multispectral imaging system includes an MSC2-BIO-1-A multispectral camera with 4 bands suitable for detecting hemoglobin and lipid in research applications.
The LED illuminator is equipped with 4 independent channels that are matched to MSC2-BIO-1-A camera. The first channel (735 nm) is sensitive to deoxyhemoglobin (deoxygenated blood). The second channel (800 nm) is sensitive to total hemoglobin (total blood). The third channel (865 nm) is sensitive to oxyhemoglobin (oxygenated blood). The fourth channel (930 nm) is sensitive to lipid. With these four spectral images a number of analysis can be performed including oxygen saturation and total hemoglobin, which are important for monitoring tissue health. Note: the MSIS-BIO-1-A is for investigational purposes only.
FEATURES
◆ Captures co-registered spectral images simultaneously
◆ 4 bands -735, 800, 865, 930 nm Technology
◆ Anti-X-Talk enhances contrast and spectral performance SENSOR SPECTRAL RESPONSE
◆ Sustained frame rates @ 10 FPS
◆ 4MP Global Shutter CMOS sensor
◆ High power pulsed LED light source
◆ Waterproof and dustproof camera head and control unit
◆ Accommodates c-mount lenses
◆ Camera head: 2.5 kg, Control box: 4 kg
We'll be glad to help you! Please contact our Sales Team for more information.
