Small, Light, and Low Power
Ideal for embedding into compact, hand-held and portable devices with a footprint of 27 mm x 27 mm x 14 mm, 20 gram weight and 2.2 W power consumption.

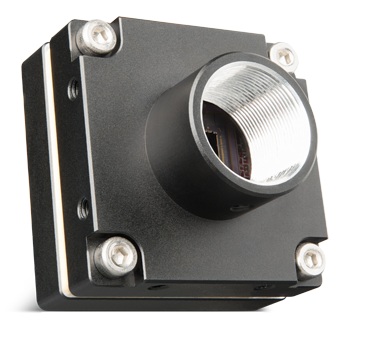

The Teledyne FLIR Firefly® S camera delivers the essential machine vision features you need in an ultra-compact body. Its small size, low power, and light weight make it ideal for embedding into portable devices.
The Firefly S camera provides amazing value by combining powerful on-camera features with the latest CMOS sensors.
Small, Light, and Low Power
Ideal for embedding into compact, hand-held and portable devices with a footprint of 27 mm x 27 mm x 14 mm, 20 gram weight and 2.2 W power consumption.
Core Machine Vision Capabilities
Essential machine vision features including GPIO, triggering, and partial image modes.
Exceptional Value
Get access to the latest global shutter CMOS sensors at low starting prices of just $199 USD.
Exposed Sensor: Design & Use Cases
The sensor in these models is open to the camera’s electronics, offering greater design flexibility and cost-effectiveness for embedded and compact vision applications. However, these cameras may not be ideal for applications requiring high optical clarity, particularly under magnification or when using collimated light sources.
| Model | MP | FPS | Sensor | Spectrum | Interface |
|---|---|---|---|---|---|
| ➡FFY-U3-04S2M-C | 0.4 | 121 | Sony IMX297 | Mono | USB 3.1 Gen 1 |
| ➡FFY-U3-04S2M-CS | 0.4 | 121 | Sony IMX297 | Mono | USB 3.1 Gen 1 |
| ➡FFY-U3-04S2C-C | 0.4 | 120 | Sony IMX297 | Color | USB 3.1 Gen 1 |
| ➡FFY-U3-04S2C-CS | 0.4 | 120 | Sony IMX297 | Color | USB 3.1 Gen 1 |
| ➡FFY-U3-04S2C-S | 0.4 | 120 | Sony IMX297 | Color | USB 3.1 Gen 1 |
| ➡FFY-U3-04S2M-S | 0.4 | 120 | Sony IMX297 | Mono | USB 3.1 Gen 1 |
| ➡FFY-U3-16S2C-C | 1.6 | 60 | Sony IMX296 | Color | USB 3.1 Gen 1 |
| ➡FFY-U3-16S2C-CS | 1.6 | 60 | Sony IMX296 | Color | USB 3.1 Gen 1 |
| ➡FFY-U3-16S2C-S | 1.6 | 60 | Sony IMX296 | Color | USB 3.1 Gen 1 |
| ➡FFY-U3-16S2M-C | 1.6 | 60 | Sony IMX296 | Mono | USB 3.1 Gen 1 |
| ➡FFY-U3-16S2M-CS | 1.6 | 60 | Sony IMX296 | Mono | USB 3.1 Gen 1 |
| ➡FFY-U3-16S2M-S | 1.6 | 60 | Sony IMX296 | Mono | USB 3.1 Gen 1 |
We'll be glad to help you! Please contact our Sales Team for more information.
