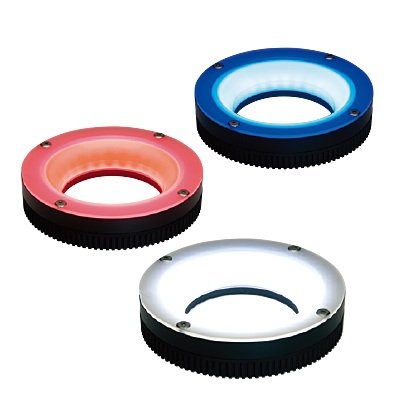

CCS LED area lights are engineered to provide precise and stable illumination for machine vision inspection systems. The product range includes ring lights, bar lights, square/flat lights, and dome configurations, enabling optimal lighting geometry for different inspection tasks.
Ring lights deliver uniform illumination around the camera axis to minimize shadows and highlight features on circular or reflective objects. Bar lights provide directional illumination and can be positioned flexibly to create bright-field or dark-field effects for surface inspection. Square and flat lights generate diffused, uniform lighting across larger areas, ideal for dimensional measurement and object detection. With high brightness, multiple wavelengths (red, white, blue, IR), and a wide range of sizes, CCS lights support reliable imaging for automated inspection, robotics, and high-speed production lines.

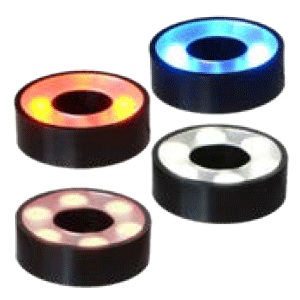

Ring lights provide uniform illumination around the camera lens, minimizing shadows and ensuring consistent lighting across the field of view. They are widely used for general inspection, OCR, code reading, and surface feature detection. By illuminating the target coaxially, ring lights help highlight edges and fine details while reducing glare on moderately reflective surfaces.

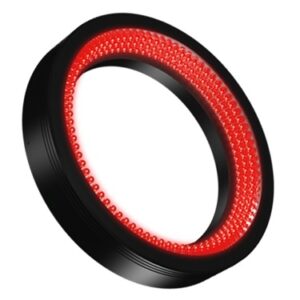

Any angle can be created through the use of flexible circuit boards. The features of the workpiece can be clearly extracted with direct light from a low angle towards the center of the workpiece.

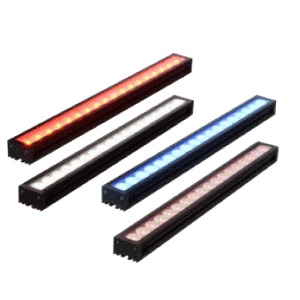

Bar lights offer high-intensity directional illumination and can be positioned at different angles to create bright-field or dark-field lighting conditions. This flexibility makes them ideal for edge detection, surface defect inspection, and highlighting textures or scratches. Multiple bar lights can be arranged around the target to achieve uniform or structured illumination.
Square or flat lights provide large-area, uniform illumination for applications requiring consistent lighting over wider fields of view. They are commonly used in dimensional inspection, object presence detection, and assembly verification. Their diffused output helps minimize shadows and ensures reliable imaging across large inspection zones.
Low-angle Square Light Series:
