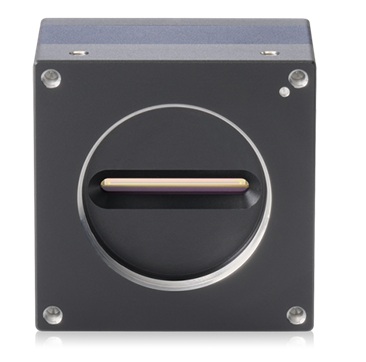

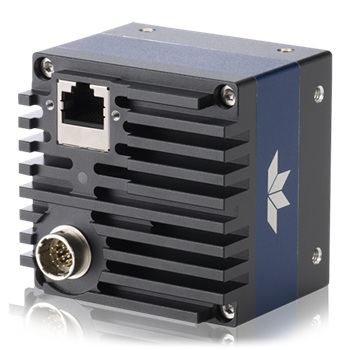

The Tetra line scan camera family uses Teledyne’s latest CMOS line scan sensor technology to deliver superior image quality, high dynamic range, and low power consumption, ideal for many cost sensitive applications.
The Tetra camera family offers a high performance-to-cost ratio through its 2.5 GigE Vision interface, which provides 2.5x bandwidth of GigE in data transmission over long cable lengths. Available in 2k, 4k, and 8k resolutions, the camera comes in both monochrome or color versions, with power consumption of under 6 watts. Monochrome models deliver excellent image quality with options for single line monochrome or dual line HDR mode, while the color models provide true trilinear red, green and blue colors without any data interpolation.
Tetra includes essential line scan features such as multiple regions of interest, programmable coefficient sets, and Power over Ethernet. Its 2.5 GigE Vision interface makes it ideal for applications such as electronics inspection, optical sorting, printed materials inspection, packaging inspection, web inspection and general machine vision.
| Model | Resolution | Spectrum | Interface | Pixel Size | Max Line Rate |
|---|---|---|---|---|---|
| Tetra 2k Color TL-GC-02K05T-00 | 2048 x 3 | Color | 2.5 GigE | 14 | 50 kHz x 3 |
| Tetra 2k Mono TL-GM-02K15B-00 | 2048 x 2 | Mono | 2.5 GigE | 14 | 150 kHz |
| Tetra 4k Color TL-GC-04K02T-00 | 4096 x 3 | Color | 2.5 GigE | 7 | 25 kHz x 3 |
| Tetra 4k Color 10GigE TL-GC-04k04T-00 | Color | 10 GigE | 42 kHz x 3 | ||
| Tetra 4k Mono TL-GM-04K07B-00 | 4096 x 2 | Mono | 2.5 GigE | 7 | 75 kHz |
| Tetra 4k Mono 10GigE TL-GM-04k16B-00 | Mono | 10 GigE | 165 kHz | ||
| Tetra 8k Mono TL-GM-08K07S-00 | 8192 x 1 SR | Mono | 2.5 GigE | 3.5 SR | 75 kHz |
| Tetra 8k Mono SR 10GigE TL-GM-08k08S-00 | Mono | 10 GigE | 82 kHz |
