Agricultural Multispectral Imaging System
The agricultural multispectral imaging system includes an MSC2-AGRI-1-A multispectral camera with 4 bands suitable for agricultural applications.
Overview
MSIS-AGRI-1-A

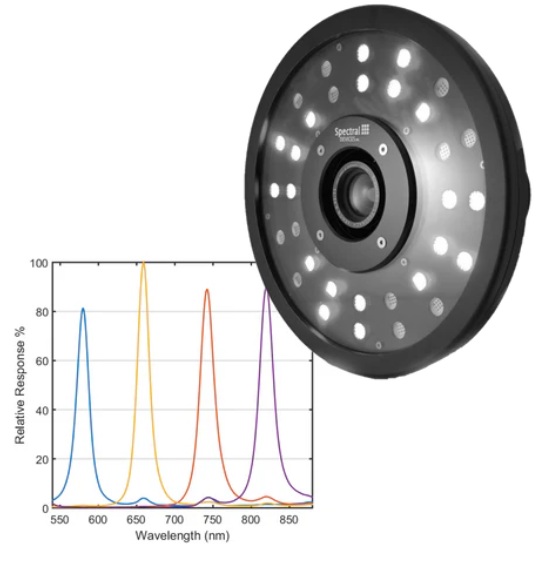

The LED illuminator is equipped with 4 independent channels that are matched to MSC2-AGRI-1-A camera. The imaging system captures 580 nm (live vegetation channel); 660 nm (NDVI red channel); 735 nm (‘red edge’ channel); and 820 nm (NDVI NIR channel). With these four images a number of spectral analyses can be performed, including NDVI and SAVI.
FEATURES
◆ Captures co-registered spectral images simultaneously
◆ 4 bands –580, 660, 735, 820 nm Technology
◆ Anti-X-Talk enhances contrast and spectral performance
◆ Sustained frame rates @ 10 FPS
◆ 4MP Global Shutter CMOS sensor
◆ High power pulsed LED light source
◆ Compact waterproof and dustproof camera head and control unit
◆ Accommodates c-mount lenses
◆ Camera head: 2.5 kg, Control box: 4 kg
