The multisensor drone camera is a turnkey, customizable, and upgradable multispectral imaging solution for easy integration into drones from DJI and others.
Each system accommodates up to 4 cameras and includes GPS with RTK capability, RTK base station, and solar sensor standard.
Customers can mix and match cameras with different spectral sensitivities (UV, VIS, NIR, SWIR, thermal), different numbers of bands per camera (mono, color, 2, 4, and 8 band multispectral), and different resolutions per band (up to 20 MP).
These systems are energy-efficient, lightweight and come fully configured with lenses, mounting hardware, on board processing, hardware synchronization, and easy to use image capture software. Each system also incudes msInspector, our Windows-based data inspection software for reviewing, correcting, calibrating, and geotagging images for orthomosaic mapping and other applications post flight.

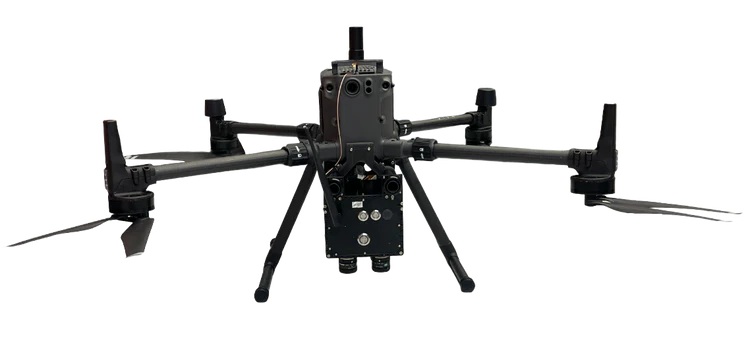

The MSDC-2-4 integrates with DJI M300-series drones and many others. Operates independently needing only 5-36 V DC power supplied by drone and ability to carry a load up to 1.7 kg.

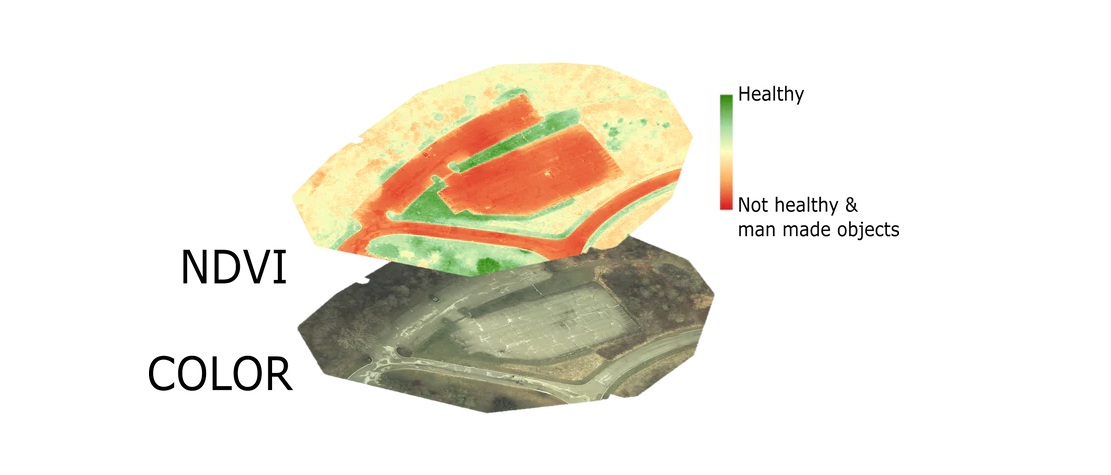

Generate multispectral orthomosaic maps. Geotagged images allow for reference with satellite imagery and maps. Multispectral imaging allows for use of different metrics, such as NDVI.

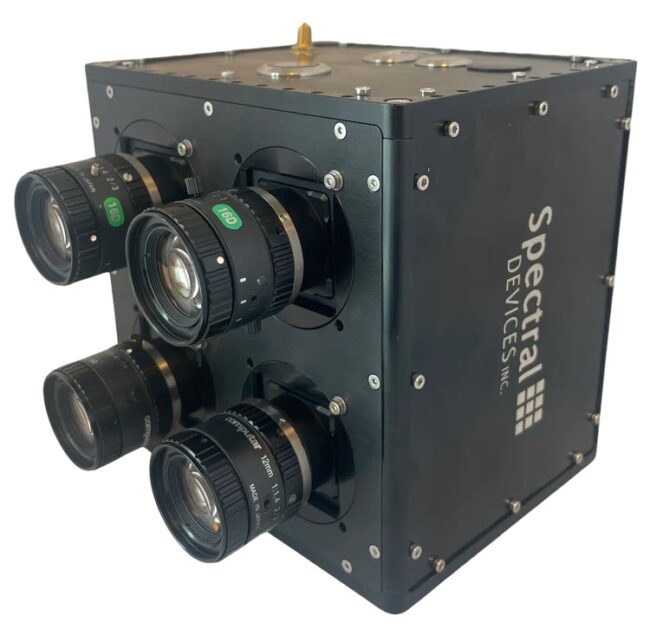

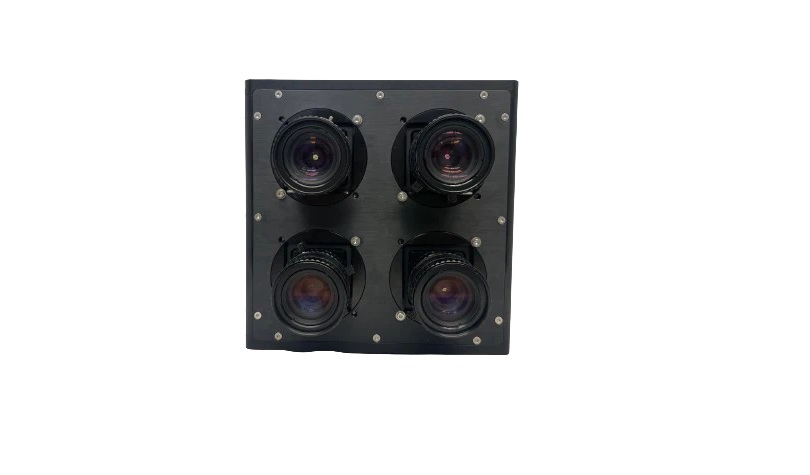

Ruggedly built, yet surprisingly light for a highly customizable multisensor drone camera. Systems range in weight from under a 1 kg to about 1.7 kg depending on the camera configuration.

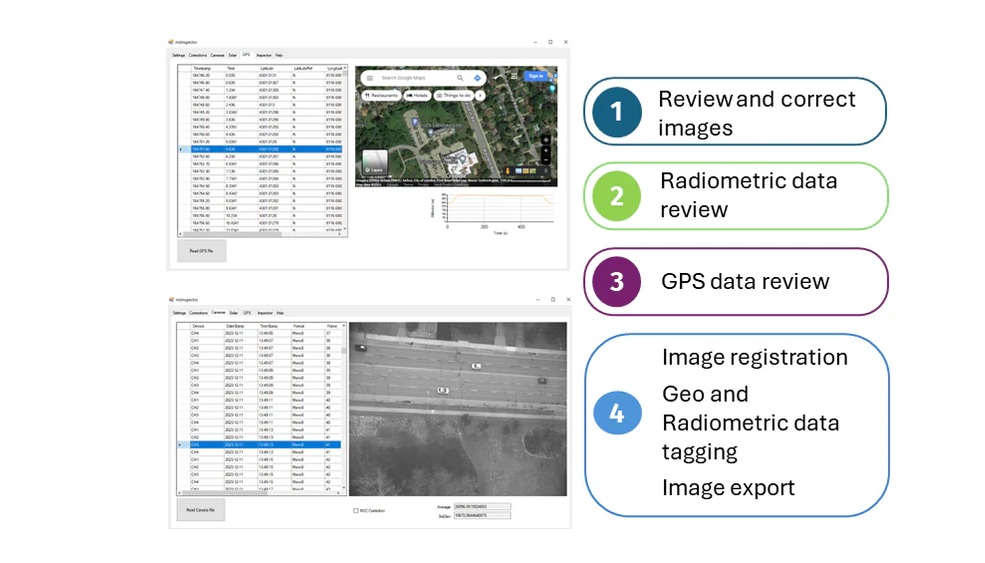

Use msInspector to inspect, correct, calibrate, and geotag images in preparation for mapping applications.

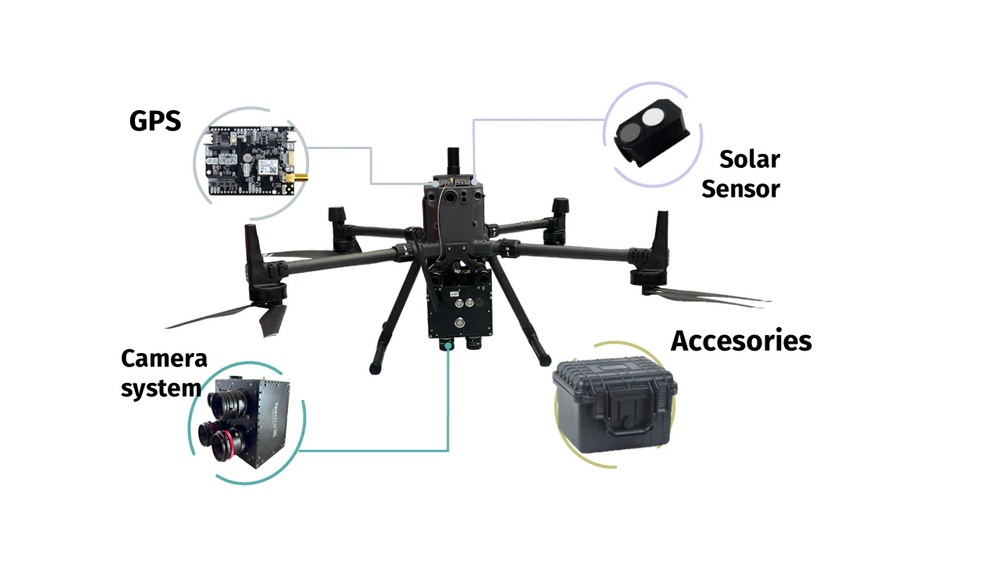

Complete package contains a fully configured MSDC-2-4 complete with all lenses and cameras, power cables, GPS cables, data cables, drone mounts, light weight GPS antenna, solar sensor, and a rugged and waterproof equipment case for transport and storage.
| Model | Part No. | Number of Bands | Band Locations | Pixel/Band | Weight |
|---|---|---|---|---|---|
| ➡Agriculture Multisensor Drone Camera | MSDC-2-4-AGRI | 6 | 440, 510, 600, 725, 800, 1500 | NIR, Red Edge, Color: 2448x2048px, SWIR: 1280x1024px | 1.7 kg |
| ➡Ultra-Wide Band Multisensor Drone Camera | MSDC-2-4-UWB | 6 | 440, 510, 600, 800, 1500, Thermal | NIR, Color: 2448x2048px, SWIR, Thermal: 640x480px | 1.7 kg |
| ➡Super Spectral Multisensor Drone Camera | MSDC-2-4-SS | 28 | 440, 510, 600, 720, 760, 800, 840, 860, 900, 940, 980, 1125, 1160, 1195, 1230, 1265, 1300, 1335, 1370, 1405, 1440, 1475, 1505, 1540, 1575, 1605, 1640, Thermal | Color: 2448x2048px, SWIR: 135x105px, Thermal: 640x480px, NIR: 256x256px | 1.7 kg |
| ➡Custom Multisensor Drone Camera | MSDC-2-4-CUS | Customer selected | Based on customer selection | 1-1.7 kg |
We'll be glad to help you! Please contact our Sales Team for more information.
