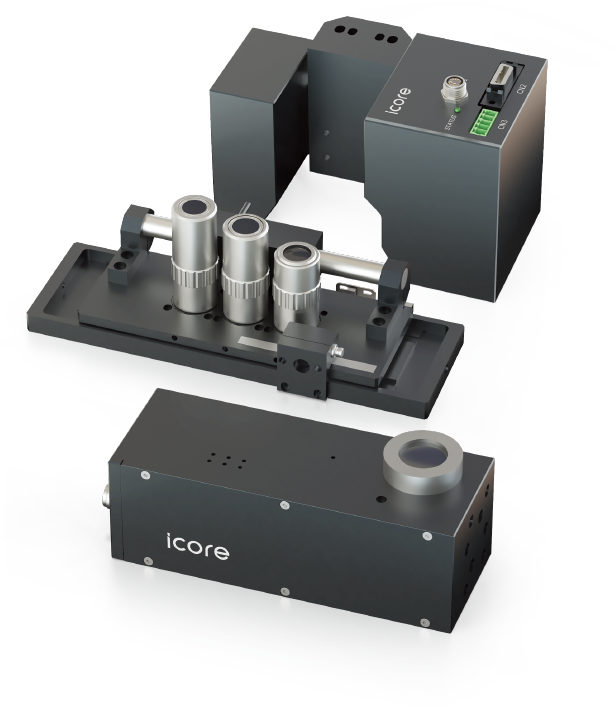

iFocus is an FPGA-based autofocus module that incorporates iCore's specialized circuit, mechanical, optical, and control design technologies.
The Auto Focus Module is applied to high-magnification optical systems and microscope inspection optical systems of AOI (Automated Optical Inspection) and is utilized in various fields.
iCore has directly developed various sensing types of auto focus sensors, such as TTL (Through The Lens) and optical triangulation, to meet customer needs. In addition, we have directly designed various lens modules and Z-axis actuators used with auto focus sensors, providing diverse solutions to satisfy our customers.

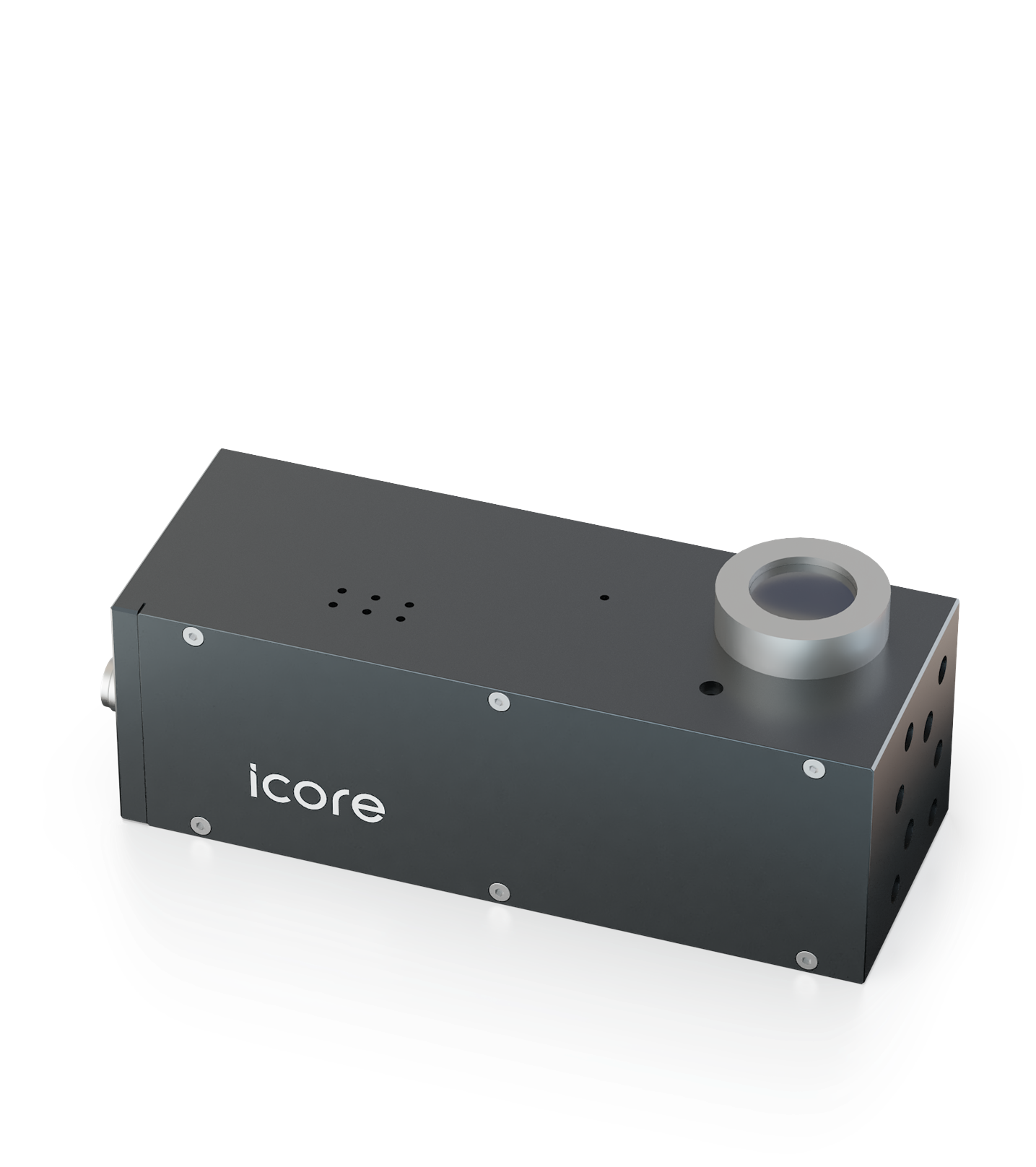

IT-AF-TTL1
Auto Focus Sensor
This is a TTL type autofocus sensor model that requires a specially designed tube lens and Z-axis control.

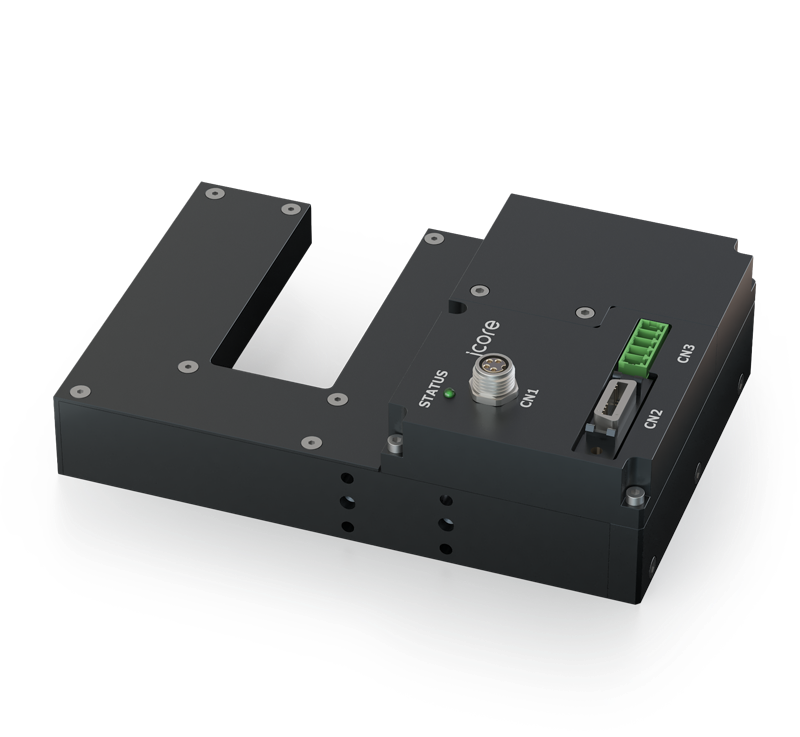

IT-AF-MBK1
Auto Focus Sensor
The AutoFocus Sensor, compatible with large-aperture cameras,
is designed to be attached to the bottom of the lens and features an integrated laser module for easy installation.
Suitable for large-aperture FA lenses

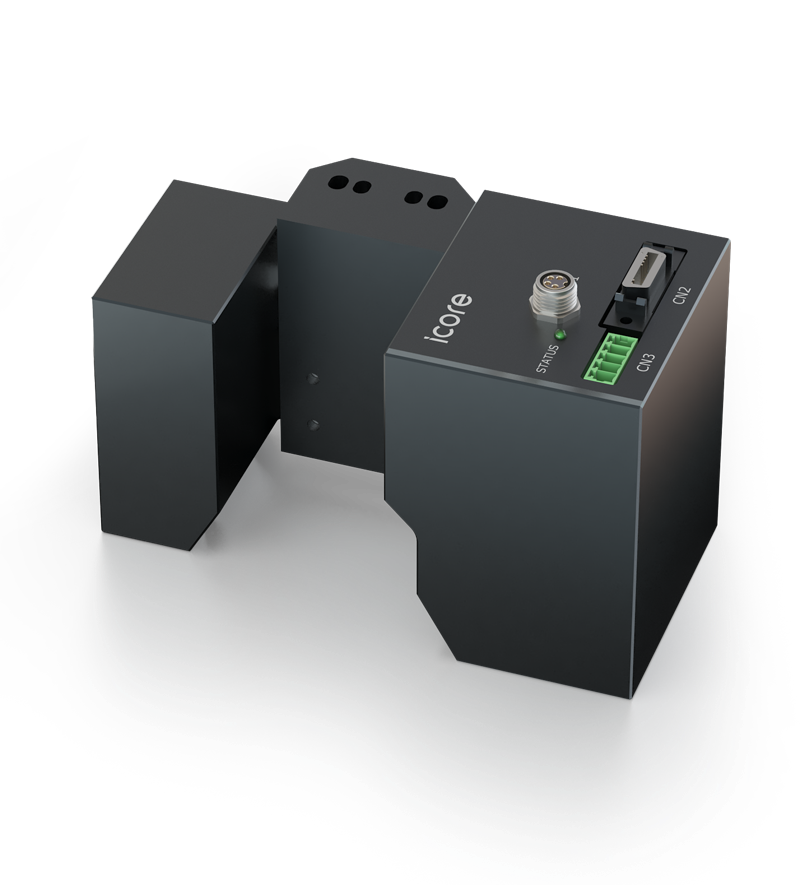

IT-AF-MBK2
Auto Focus Sensor
It features an integrated Auto Focus Sensor laser module optimized for the objective lens,
making installation easy, and
is characterized by a compact size that wraps around the tube lens.
Suitable for microscope optical systems

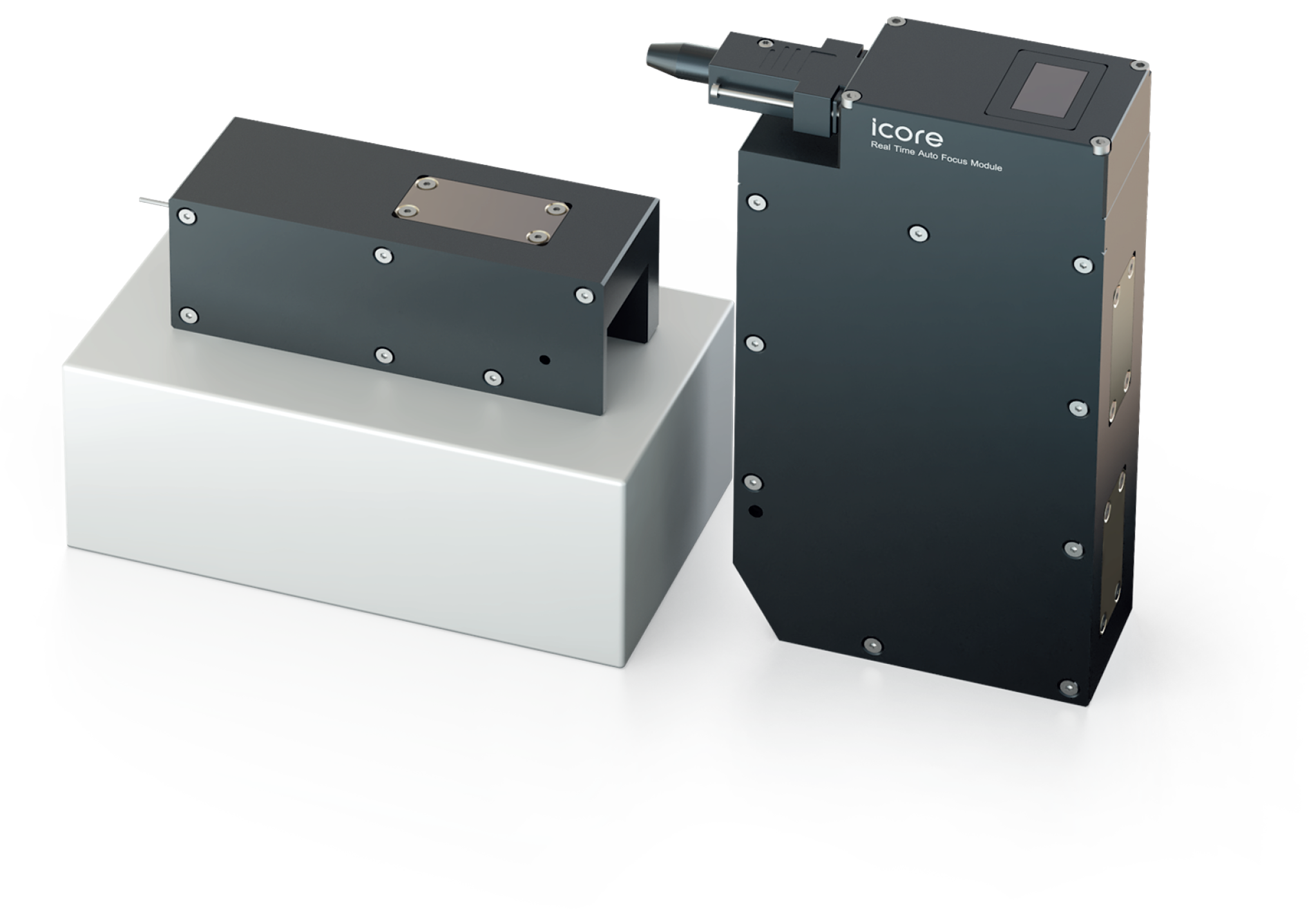

IP-AF1
Auto Focus Sensor
It is an autofocus module with a fast sampling rate of 50kHz that outputs height values as analog data.

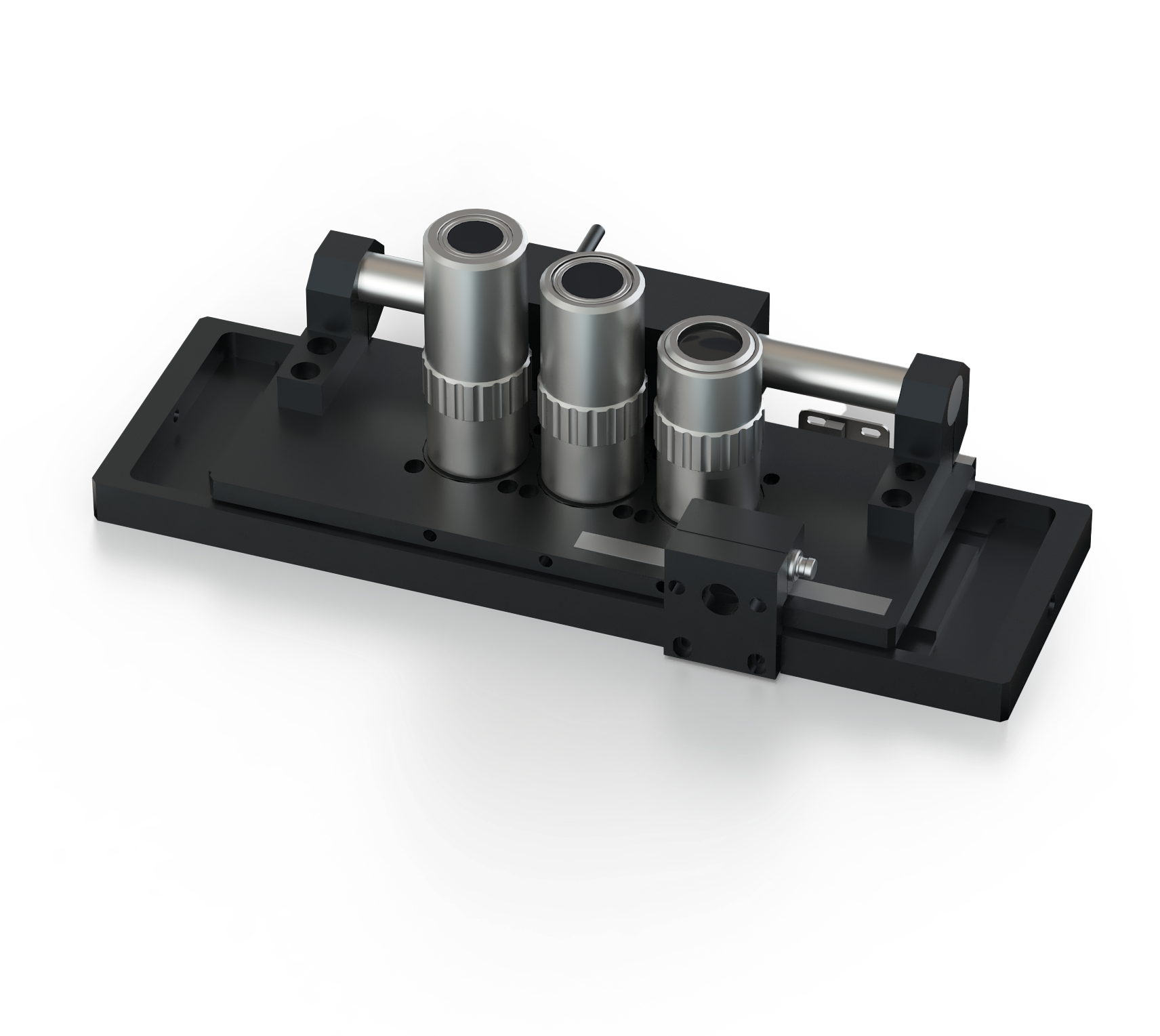

Linear Lens Changer
The Linear Lens Changer (LLC) is a lens-changing module based on a high-speed linear shaft motor that enables high-speed replacement of objective lenses.
It moves adjacent lenses within 0.2 seconds, guaranteeing an accuracy of ±1μm.
It provides an optimized solution when integrated with iCore’s iFocus (autofocus module).

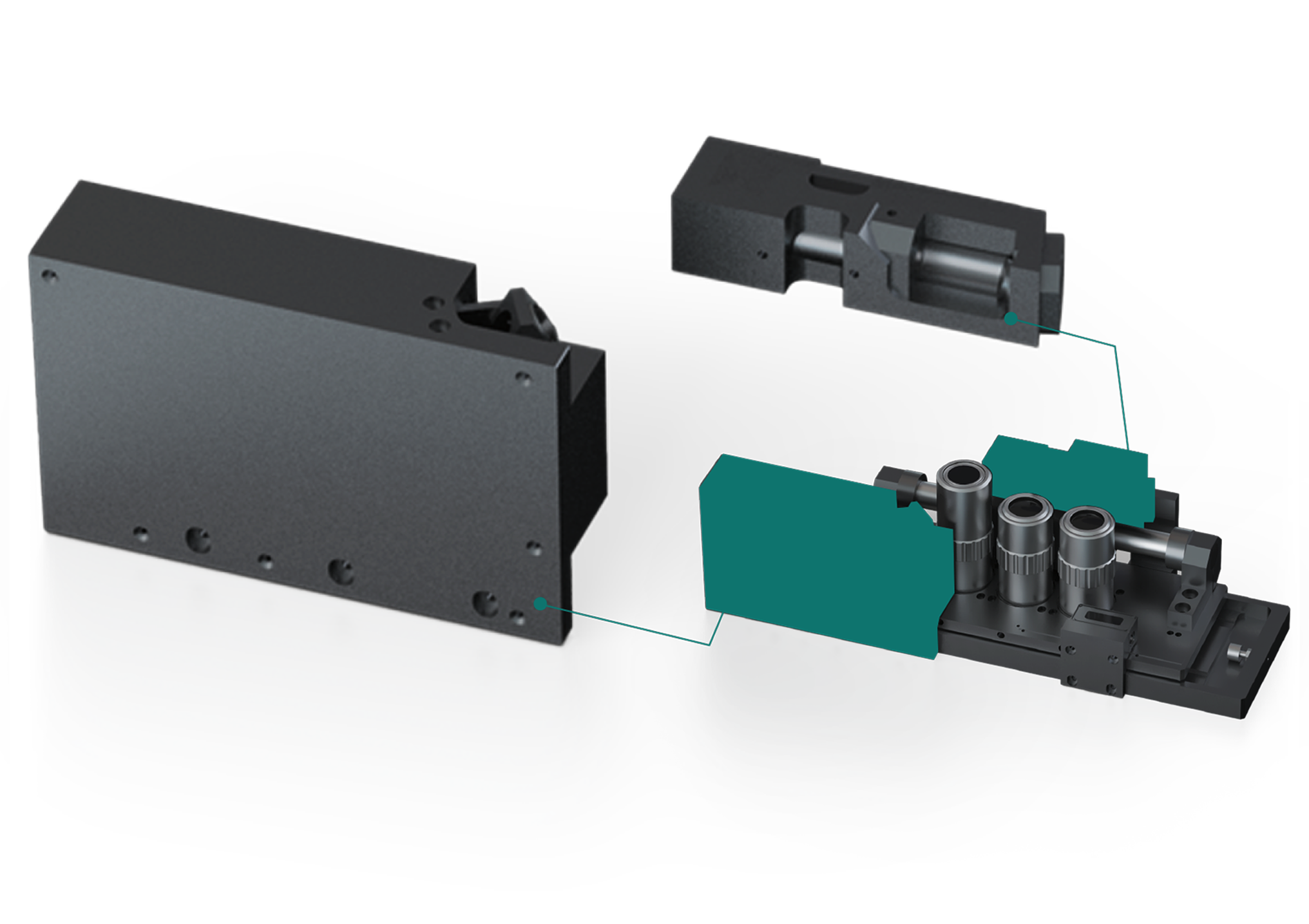

IT-AF-LC
Auto Focus Sensor
This is an optical triangulation autofocus model specifically designed for Lens Changers, suitable for environments requiring multiple lenses. It can be used in combination with iCore’s Linear Lens Changer and features a more compact design compared to existing products.
Focus Update Rate

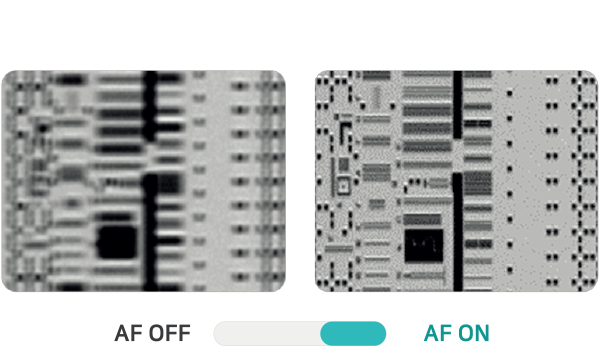

Autofocus that automatically adjusts the focus
In high-magnification optical systems, the depth of field (DOF) is shallow, which can cause the image to go out of focus when the height of the subject changes.
iCore provides a solution that measures the distance between the optical system and the subject in real time and maintains a constant distance.
