Z-Trak Express
The Z-Trak™ Express 1K5 series delivers high-speed 3D inspection with a constant profile rate of 5,000 profiles per second at the maximum measurement range, with real-time processing capabilities.
Overview
3D Laser Profiler

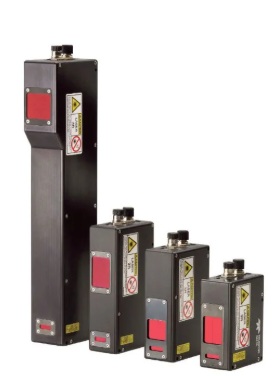

Available in various laser configurations and up to 1,700mm horizontal field-of-view, one or more Z-Trak Express 1K5 sensors can be combined for precise in-line 3D measurement and inspection in various industries, including secondary battery production, automotive, lumber inspection, factory automation, and logistics.
The Z-Trak™ Express 1K5 series represents the latest innovation in 3D measurement and inspection technology from Teledyne DALSA. Engineered for cost-effective, in-line 3D measurement, the Z-Trak Xpress 1K5 sets a new standard with its high-speed inspection capabilities and real-time processing. Achieving a maximum profile rate of 5,000 profiles per second across at full measurement range, the Z-Trak Express 1K5 is perfectly suited for various industries, including:
Secondary battery production
Automotive
Lumber inspection
Factory automation
Logistics
Unmatched Simplicity and Value

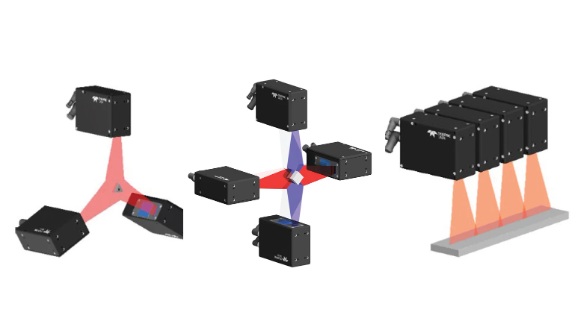

Featuring a 1,700mm horizontal field-of-view, the Z-Trak Express 1K5 model enables precise measurement and inspection of wide-body objects such as wooden planks, road surfaces, pallets, and automotive body parts, using a single sensor. It supports the integration of multiple sensors in various topologies, allowing for advanced measurement tasks such as:
Measuring the thickness of moving parts
Performing continuous 360° inspections
Extending the horizontal field-of-view without compromising Z-resolution
To simplify deployment and reduce costs, the Z-Trak Express 1K5 synchronizes multiple sensors via the data cables and supports content-based triggering for enhanced flexibility.
Ready for Deployment
All Z-Trak profilers deliver micrometer-level measurements without the need for in-field calibration. The Z-Trak Express 1K5 accommodates a wide range of objects, regardless of size, shape, color, finish, or material composition. Key features include:
Real-time, user-programmable profile enhancement functions
Two-point HDR

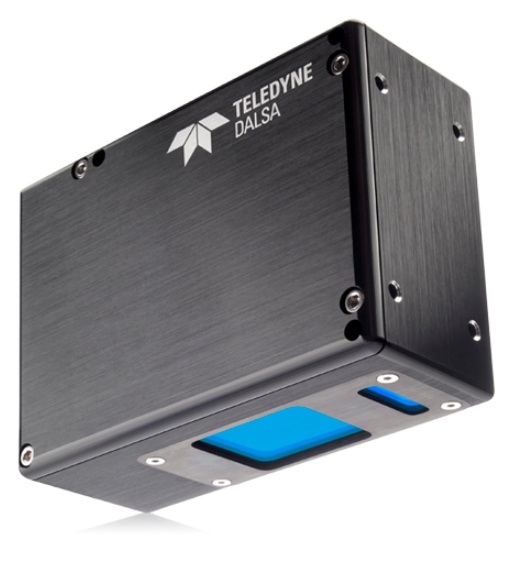

Models with eye-safe red or blue lasers
Like all Z-Trak laser profilers, the Z-Trak Express 1K5 performs on-board processing without compromising the profile rate.
| Product | Max Object Height | Stand Off Distance (mm) | Object Width (mm) | Laser Wavelength | Repeatability (+/-µm) |
|---|---|---|---|---|---|
| ➡Z-Trak Express-1K5-0040-B2 | 40mm | 79.5 | 109.0 | 405nm | 1.00-1.50 |
| ➡Z-Trak Express-1K5-0040-R2 | 40mm | 79.5 | 109.0 | 660nm | 1.00-1.50 |
| ➡Z-Trak Express-1K5-0100-B2 | 100mm | 245.0 | 204.0 | 405nm | 3.0-4.0 |
| ➡Z-Trak Express-1K5-0100-R2 | 100mm | 235.0 | 204.0 | 660nm | 3.0-4.0 |
| ➡Z-Trak Express-1K5-0180-B2 | 180.0 | 598.0 | 452.0 | 405nm | 6.0-20.0 |
| ➡Z-Trak Express-1K5-0180-R2 | 180.0 | 598.0 | 452.0 | 660nm | 6.0-20.0 |
| ➡Z-Trak Express-1K5-0675-B3 | 675.0 | 725.0 | 1720.0 | 405nm | 10.0-30.0 |
| ➡Z-Trak Express-1K5-0675-R3 | 675.0 | 700.0 | 1720.0 | 660nm | 10.0-30.0 |
