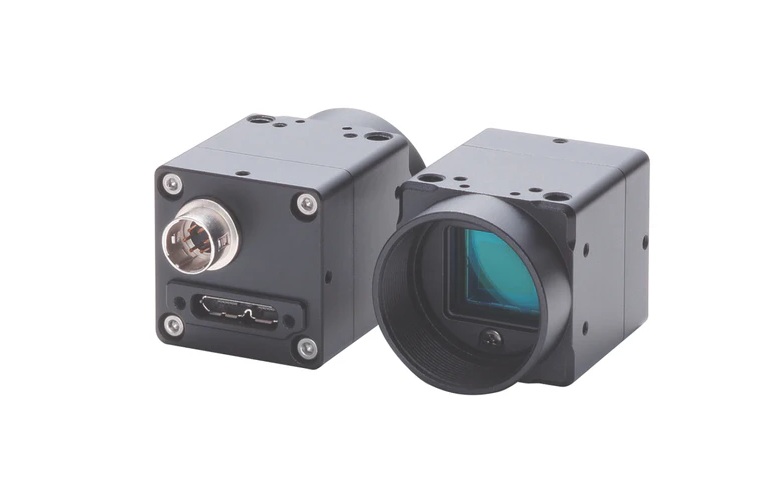

Color and Mono Cameras
Our monochrome and color cameras feature a 1-inch global shutter CMOS sensor, USB3 Vision and GenICam compliance, and rugged construction.
Overview
High Frame Rate
Cameras record 4.2MP images at up to 89FPS in full frame mode. Cameras can record at up to several thousand FPS for a small region of interest.
Cameras record 4.2MP images at up to 89FPS in full frame mode. Cameras can record at up to several thousand FPS for a small region of interest.
Miniature Light-Weight Design
The camera weighs less than 55 grams and is 28 mm x 28 mm x 47 mm in size.
Professional SDK
Power users can write their own camera applications using the included SDK for Windows, Linux, MacOS, and Raspberry Pi. Multiple languages supported (C#, C++, VB, Python) with many examples. Image viewer software provided with SDK.
Power users can write their own camera applications using the included SDK for Windows, Linux, MacOS, and Raspberry Pi. Multiple languages supported (C#, C++, VB, Python) with many examples. Image viewer software provided with SDK.

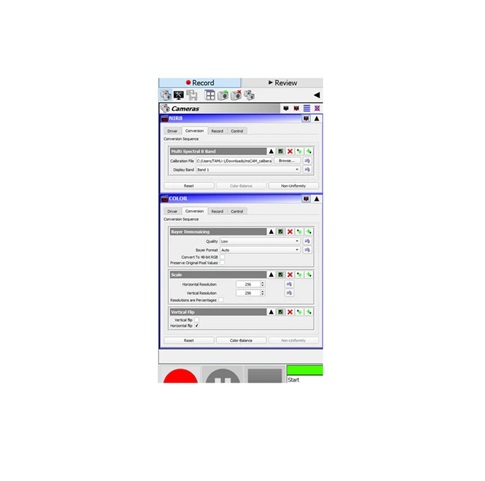

Windows Software
Easy to use Windows-based software (optional). Camera driver installation takes minutes. Simple interface for configuring camera settings. Real-time display of images with simultaneous recording to popular file formats. Easy-to-learn interface with interactive help and user guides.
Flexible Triggering and Strobing

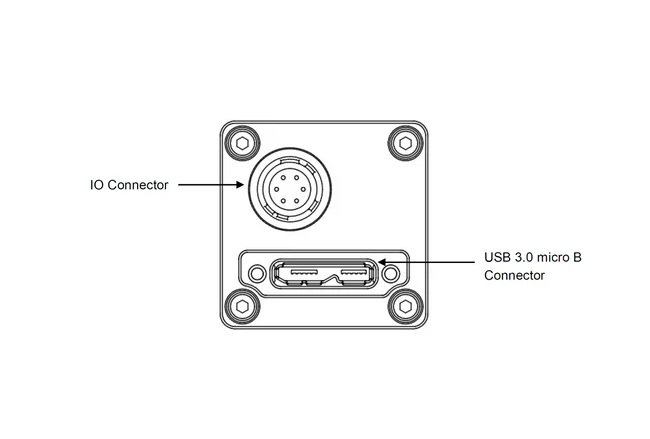

Back-facing Hirose connector with 4 programable GPIO connections. The GPIOs can be configured as inputs or outputs and programmed for trigger or strobe functions. An optional trigger cable is available.
Back-facing Hirose connector with 4 programable GPIO connections. The GPIOs can be configured as inputs or outputs and programmed for trigger or strobe functions. An optional trigger cable is available.
Accessory Kit

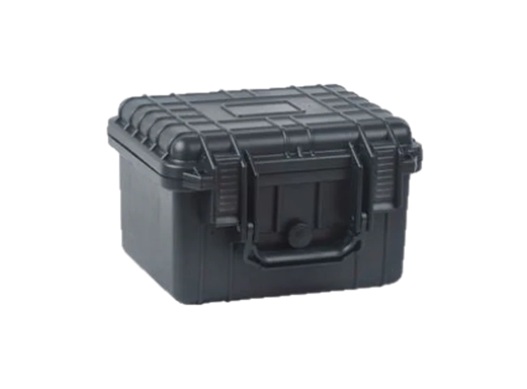

Each camera is supplied with an accessory kit containing a USB3 Vision cable, a tripod adaptor, and a rugged and waterproof equipment case for transport and storage.
| Model | Part No. | Number of Bands | Band Locations | Pixel/Band |
|---|---|---|---|---|
| ➡4.2MP Color Camera | MSC2-C42-1-A | 3 | 440, 520, 600 nm | 2048 x 2048 |
| ➡4.2 MP Monochrome Camera | MSC2-M42-1-A | 1 | Customizable between 350 to 1000 nm | 2048 x 2048 |
