Online Multispectral Agriculture Imaging Lab Kit
The Online Multispectral Agriculture Imaging Lab Kit is a calibrated imaging system designed specifically for plant science, crop phenotyping, and precision agriculture research.
Overview
Calibrated Platform for Crop Phenotyping & Spectral Research
It enables controlled acquisition and analysis of multispectral reflectance data, allowing users to derive meaningful insights into plant health, stress conditions, and crop variability under laboratory conditions.
- Purpose-Built for Agricultural Research
This system is engineered to support:
- ◆ Plant phenotyping and growth analysis
- ◆ Chlorophyll estimation and vegetation health assessment
- ◆ Nutrient deficiency and stress detection
- ◆ Water stress monitoring
- ◆ Early-stage disease identification
By combining calibrated imaging geometry with spectral acquisition, the platform ensures repeatable and scientifically reliable measurements.
- Multispectral Imaging Architecture

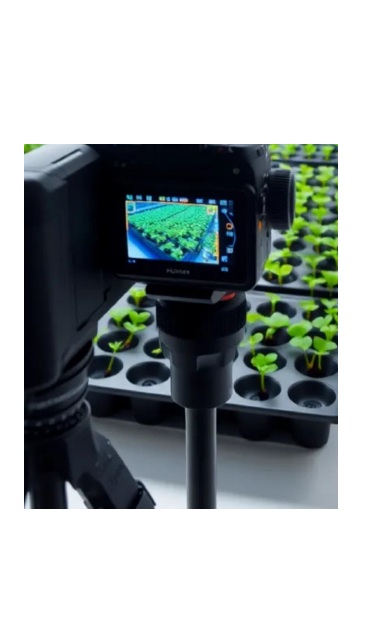

Snapshot Multispectral Camera System
- ◆ 4-band simultaneous imaging at: 580 nm, 660 nm, 735 nm, 820 nm
- ◆ 512 × 512 pixels per band
- ◆ 4 MP, 1-inch CMOS sensor
- ◆ 5.5 µm pixel size with global shutter
- ◆ Frame rate up to 10 FPS
- ◆ Wide exposure control (22 µs to 16.77 s)
This enables precise capture of spectral signatures critical to vegetation analysis, especially in red-edge and near-infrared regions.
Synchronized Spectral Illumination
- ◆ 4-channel LED illumination aligned to spectral bands
- ◆ 8 high-power LEDs per wavelength
- ◆ Pulsed illumination for controlled acquisition
- ◆ Uniform and stable lighting geometry
This ensures consistent reflectance measurement conditions, eliminating variability from ambient light.
Control & Synchronization Unit
- ◆ Dedicated external controller for camera and illumination
- ◆ Hardware-level synchronization for accurate spectral capture
- ◆ Power input: 18–75 V DC / 110–240 V AC
- ◆ Approx. 60 W system power consumption
Optical & Mechanical Configuration
- ◆ Standard C-mount lens interface
- ◆ Supports 8.5 mm to 50 mm focal lengths
- ◆ Manual focus and iris with locking mechanism

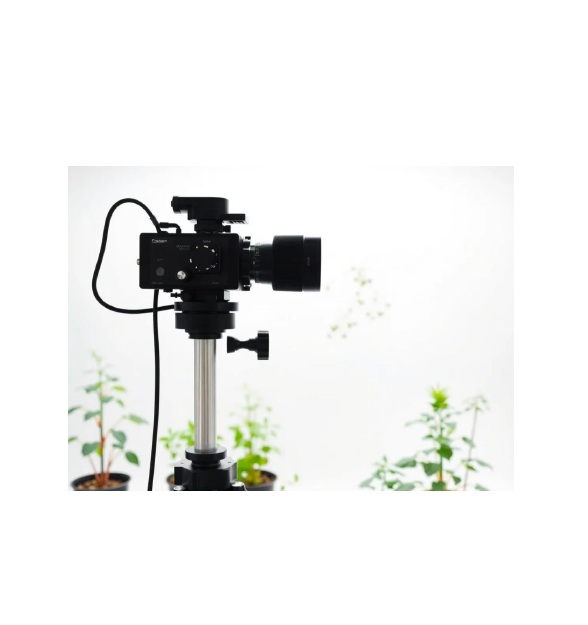

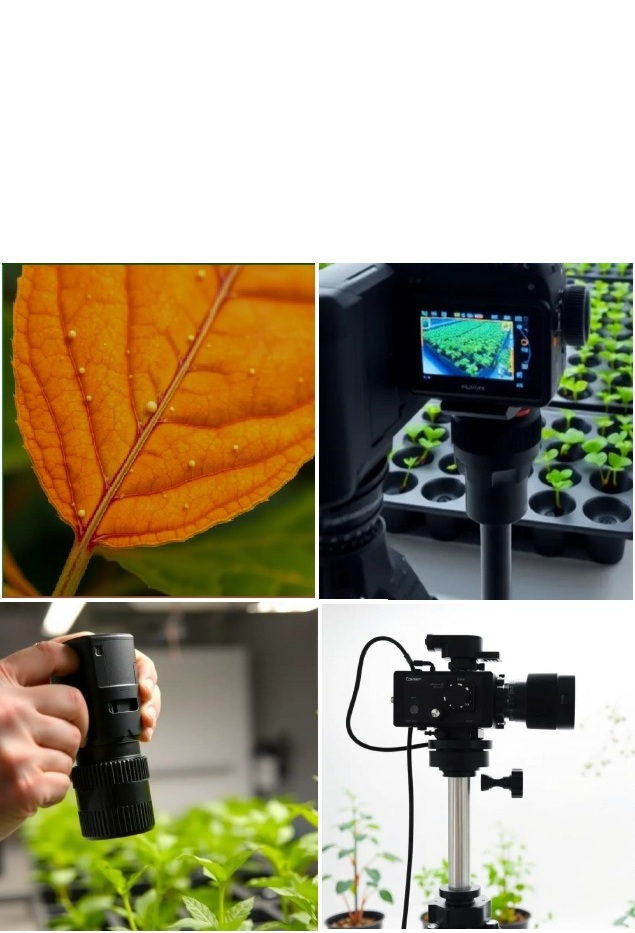

Lab Structure:
- ◆ Adjustable optical column stand
- ◆ Rigid mounting for camera and illumination
- ◆ Stable and repeatable imaging geometry
- ◆ Optional motorized linear stage / mini conveyor
- Calibration & Measurement Integrity
The system is designed for quantitative spectral analysis, not just imaging:
- ◆ Reflectance reference tile included
- ◆ Dark-frame correction workflow
- ◆ Relative reflectance normalization
This enables true spectral comparison across samples and time, critical for research and validation.
- Spectral Data Processing Workflow
The kit supports an open and flexible data workflow, allowing users to process data using:
- ◆ MATLAB
- ◆ Python
- ◆ OpenCV
- ◆ Any third-party analytical tools
No proprietary lock-in ensures full research flexibility and algorithm development freedom.
- Agriculture-Specific Analysis Capabilities
Vegetation Index Computation
- ◆ NDVI (Normalized Difference Vegetation Index)
- ◆ NDRE (Normalized Difference Red Edge)
- ◆ Custom spectral indices
These are used to derive:
- ◆ Crop vigor and biomass estimation
- ◆ Chlorophyll concentration trends
- ◆ Early stress and anomaly detection
Advanced Research Applications
- ◆ Longitudinal crop monitoring studies
- ◆ Spectral model development and validation
- ◆ Controlled experimental analysis for agronomy research
- ◆ Precision agriculture R&D workflows
- Automation & Throughput Enhancement (Optional)
Automation Module
- ◆ Motorized linear stage or mini conveyor system
- ◆ Encoder-based trigger synchronization
- ◆ Batch acquisition capability
This significantly improves:
- ◆ Throughput
- ◆ Positional repeatability
- ◆ Dataset consistency for large experiments
- System Integration & Support
The kit is delivered as a complete, calibrated hardware platform with:
- ◆ Installation and setup guidance
- ◆ Application-level consulting
- ◆ Integration support for academic labs
Designed specifically for universities, agricultural research institutes, and plant science laboratories.
- Key Differentiators
- ◆ True multispectral calibrated system (not RGB approximation)
- ◆ Snapshot multi-band acquisition for accurate spectral correlation
- ◆ Integrated illumination + synchronization (lab-grade control)
- ◆ Open data workflow (MATLAB / Python / OpenCV)
- ◆ Designed for research repeatability and publication-grade studies
The Online Multispectral Agriculture Imaging Lab Kit establishes a dedicated spectral research infrastructure within academic environments, enabling:
- ◆ Scientific crop analysis under controlled conditions
- ◆ Development of precision agriculture methodologies
- ◆ Training in modern agri-imaging and spectral analytics
- ◆ Research-grade experimentation and validation
