Online Machine Vision Kit

Industrial Machine Vision Training & Prototyping Platform

The Online Machine Vision Kit is a comprehensive, industry-focused platform designed for learning, experimentation, and rapid prototyping in industrial automation. It delivers a complete hands-on experience of real-world vision systems, enabling users to design and deploy applications using a structured Capture | Compute | Control approach.

Overview

This kit provides a desktop-level industrial machine vision experience, combining high-performance hardware with intuitive software tools. It is ideal for building practical knowledge in inspection, measurement, identification, and automation.

From fundamentals to advanced applications, the platform supports seamless transition into real industrial deployment.

Key Features

• ◆ 5MP GigE Industrial CameraHigh-resolution imaging (2448 × 2048) with global shutter for precise inspection.
• ◆ Structured Vision Learning ModulesCovers presence detection, measurement, pattern matching, OCR, and inspection.
• ◆ User-Friendly Development EnvironmentBuild applications using an intuitive point-and-click interface.

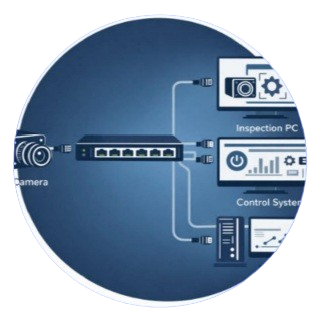

• ◆ Industrial Communication & ControlSupports Digital I/O, RS-232, Ethernet, PLC integration, and camera triggering.

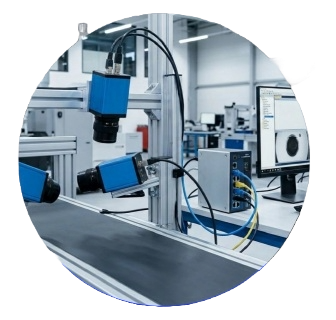

• ◆ Conveyor-Based Demonstration SetupReal-time sorting and inspection simulation.
• ◆ Future-Ready ArchitectureExpandable to AI-based vision and line scan systems.

Software & Vision Capabilities

Develop live industrial applications with a powerful suite of tools:

◆ Image Processing & Segmentation
◆ Edge Detection & Geometry Analysis
◆ Optical Character Recognition (OCR)
◆ Barcode & Data Matrix Reading
◆ Color Detection & Classification
◆ Object Tracking, Counting & Sorting

Custom interfaces can be created for monitoring, inspection, and automation control.

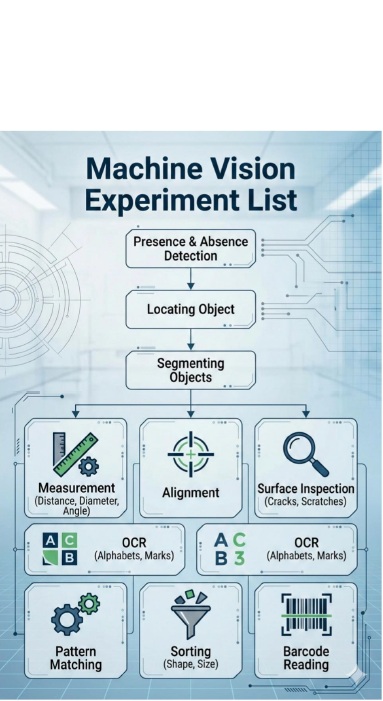

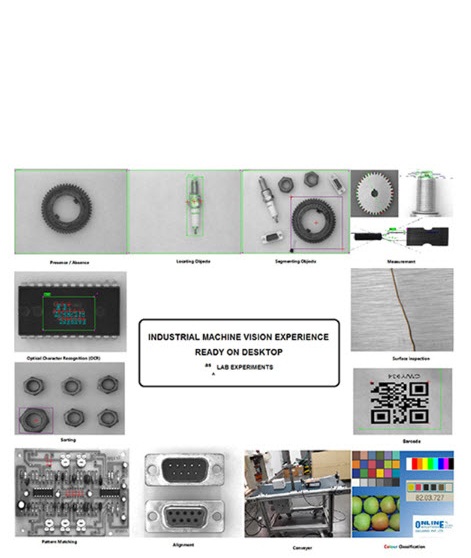

Experiment Modules

Inspection & Detection
◆ Presence / Absence Detection
◆ Surface Inspection (cracks, scratches, defects)
◆ Foreign Object Detection

Measurement
◆ Distance, Gap, Thickness
◆ Diameter and Angle Measurement
◆ Alignment Verification

Identification
◆ OCR for alphabets and markings
◆ Pattern Matching
◆ Barcode and Matrix Code Reading

Classification & Sorting
◆ Color-based classification
◆ Shape and size-based sorting
◆ Object counting and tracking
