Effilux Dome Lights
Using a dome, the light beams are reflected across the entire inner surface before reaching the object. This allows for the illumination of reflective or curved surfaces that would otherwise produce excessive glare if lit directly.
Overview
Dome Lights
Effilux dome lights provide highly diffused, homogeneous illumination by reflecting light internally across the dome surface. This eliminates glare and hotspots, making them ideal for reflective, curved, or uneven surfaces. Common applications include packaging inspection, barcode reading, and cosmetic surface inspection.

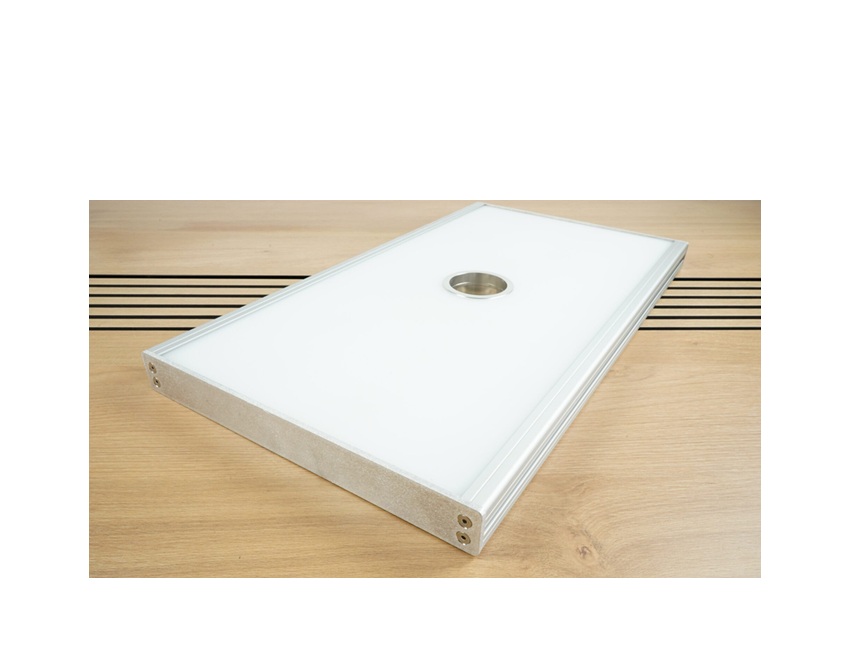

1. EFFI-FD
Uniform LED light with camera opening
The EFFI-FD is a flat dome LED light designed to provide both direct and diffuse illumination, making it particularly effective for inspecting reflective or curved surfaces. Its compact and robust design allows for seamless integration into production lines, and it is often used as the mechanical base of the vision system itself. In many cases, the EFFI-FD can serve as a space-saving alternative to traditional dome lights such as the EFFI-IDS or EFFI-SDOME.
This lighting solution is ideal for applications such as character detection on reflective packaging, barcode reading on curved metallic surfaces, and surface inspection requiring a wide field of view. It features an anti-reflection system that absorbs stray light from surrounding sources, ensuring optimal image clarity. The integrated AIC driver allows for precise intensity control, and the light can operate in either continuous or strobe mode. The EFFI-FD is available with camera hole diameters of 39 mm, 50 mm, 58 mm, or 65 mm to suit various optical setups.

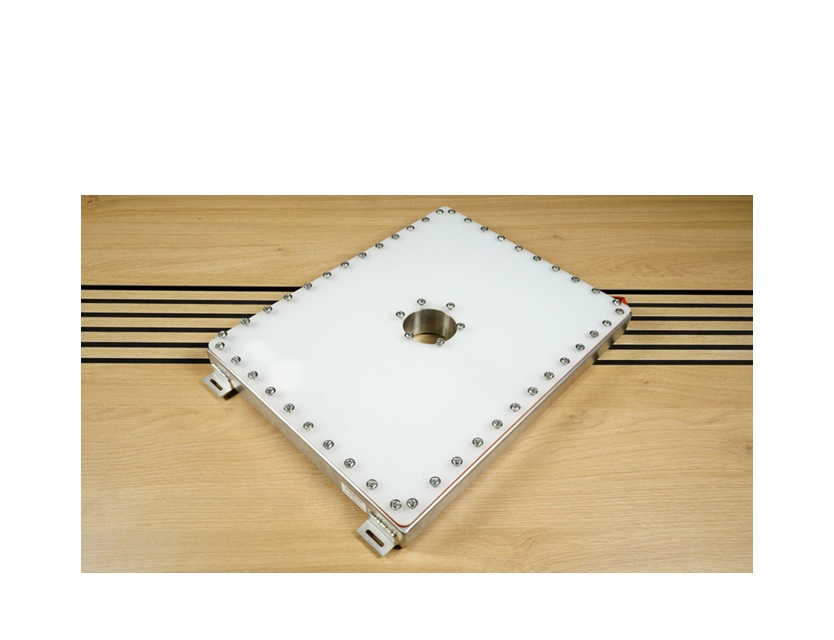

Waterproof LED flat dome
The EFFI-FD-IP69K is a flat dome LED light designed for reflective surface inspection in hygiene-critical environments. Built with a 100% waterproof stainless steel housing, it complies with the IP69K standard, making it ideal for food processing, pharmaceutical, and washdown applications.
This lighting solution delivers both direct and diffuse illumination, ensuring optimal visibility on curved or shiny surfaces. Its compact and robust design allows for easy integration into production lines, and it is frequently used as the mechanical foundation of the vision system itself. The EFFI-FD-IP69K combines the optical performance of the standard EFFI-FD with the durability and cleanability required in environments subject to high-pressure cleaning and chemical exposure.

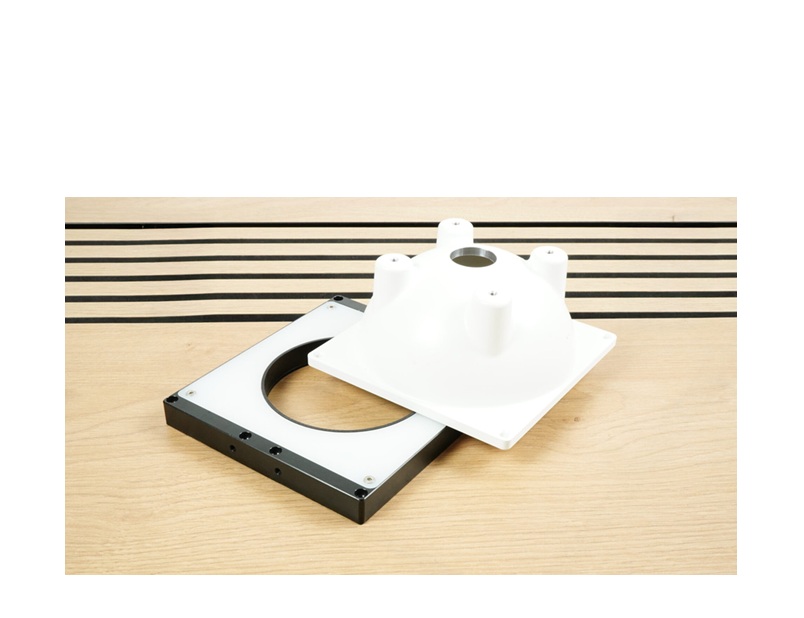

3. EFFI-SDOME
Compact, flexible LED dome for industry
The EFFI-SDOME is a dome-shaped LED light that delivers uniform, shadow-free illumination for inspecting reflective or curved surfaces. It is ideal for applications like code reading on shiny packaging or quality control on metallic parts.
Designed in a single optimized size, the EFFI-SDOME is also mechanically and optically compatible with the EFFI-SRING, allowing users to easily switch between dome and ring lighting without changing the setup. This flexibility makes it a smart and adaptable choice for demanding machine vision environments.
3. EFFI-SDOME
Compact, flexible LED dome for industry
The EFFI-SDOME is a dome-shaped LED light that delivers uniform, shadow-free illumination for inspecting reflective or curved surfaces. It is ideal for applications like code reading on shiny packaging or quality control on metallic parts.
Designed in a single optimized size, the EFFI-SDOME is also mechanically and optically compatible with the EFFI-SRING, allowing users to easily switch between dome and ring lighting without changing the setup. This flexibility makes it a smart and adaptable choice for demanding machine vision environments.
