RGB-NIR Multispectral Imaging System

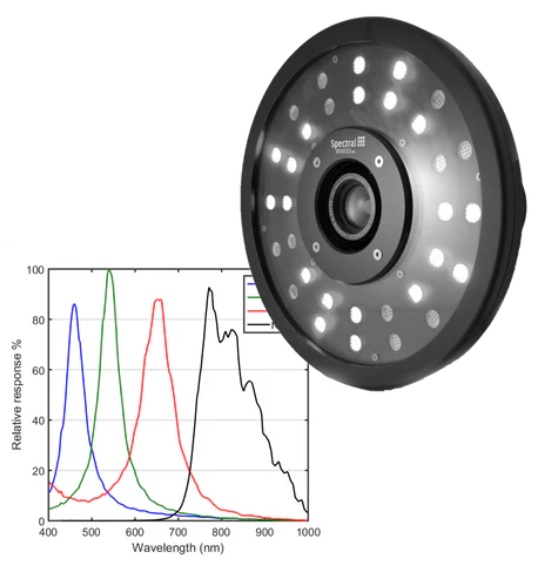

Our multispectral imaging system with RGB and NIR bands includes an MSC2-RGBN-1-A camera with red, green, blue and NIR spectral bands.
Overview
MSIS-RGBN-1-A
The illuminator contains 4 channels of LEDs, where each channel is spectrally matched to one camera band. The system is well-suited to a variety of applications where color and NIR imaging are performed simultaneously.
FEATURES
◆ Captures co-registered spectral images simultaneously
◆ 4bands –450, 550, 650, 800 nm Technology
◆ Anti-X-Talk enhances contrast and spectral performance SENSOR
◆ Sustained frame rates @ 178 FPS
◆ 4MP Global Shutter CMOS sensor
◆ High power pulsed LED light source
◆ Compact waterproof and dustproof camera head and control unit
◆ Accommodates c-mount lenses
◆ Camera head: 2.5 kg, Control box: 4 kg
