This blog is to cover Industrial applications where LASER can help in solving problems and assist the manufacturing or assembly processes.

LASER stands for Light Amplification by Stimulated Emission of Radiation. It is a device that emits light through a process of optical amplification based on the stimulated emission of electromagnetic radiation, producing a highly coherent, monochromatic, and collimated beam.

We can divide the LASER into the following broad categories to understand the usage and applications better:

LASER PROJECTORS ( for Optimal Positioning and Process Reliability)

What is Laser Projection? (Technical Overview)

Technically, a Laser Projector is an optical device that uses a laser diode (or multiple diodes) as its primary light source instead of a traditional high-pressure bulb.

1. How It Works (The Optical Path)

In industrial systems like those from Z-LASER, the process involves several key stages:

• The Source: A semiconductor laser diode generates a monochromatic, highly concentrated beam. Unlike a bulb that emits light in all directions, a laser is “coherent,” meaning the light waves are in phase and stay focused over long distances.
• Deflection & Scanning: The beam hits a set of galvanometer scanners—ultra-fast, motor-controlled mirrors. These mirrors move hundreds of times per second to “trace” an image or line onto a surface so quickly that the human eye perceives a solid, flickering-free shape.
• Modulation/Blanking: To create separate shapes or dashed lines, the laser uses blanking. This is an electronic control that turns the laser off for microseconds while the mirrors reposition, ensuring no “trail” lines are visible between projected elements.

2. Key Technical Advantages

• Focus-Free Operation: Because laser light is highly collimated (parallel), the projection remains sharp even on curved or uneven surfaces without needing a focus ring.
• Longevity: Traditional lamps degrade and fail after ~3,000 hours. Industrial laser sources often last 20,000 to 30,000 hours with constant brightness.
• Precision: Industrial projectors function as “optical templates,” allowing sub-millimeter accuracy for positioning fiberglass mats in aerospace or steel plates in construction.

Application advantages:

• Reduce production times and costs: Significantly shortens manufacturing cycles and lowers expenses
• Minimize error rates: Precise guidance effectively prevents assembly mistakes
• Simplify processes: Template-free workflows enable greater flexibility and efficiency
• Enhance quality and precision: Improves product quality through exact alignment
• Optimize workflows: Optical instructions accelerate and streamline assembly

Application areas:

Automotive:

RV Construction

Laser projectors and positioning lasers support caravan construction. The precise projection of cutting and assembly lines speeds up production, reduces errors, and ensures consistent quality.

Alignment of Components

Positioning lasers support the precise alignment of components in automotive production. This speeds up assembly processes and ensures consistent quality.

Displaying Weld Seams

A vehicle body contains more than 1,500 weld seams. In this process, laser projection of the individual weld seams not only makes the work significantly easier, but also ensures that every single seam is checked.

Welding

Accurate positioning is a key factor for achieving clean results, not only in the production of complex 3D frame and structural parts. This step is made significantly easier with the use of laser projectors, which display the exact target position when tacking components.

Electronics

Worker Guidance

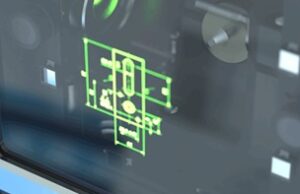

Laser projectors support operators during assembly by projecting screw positions, component outlines, or work steps directly onto the work surface. This reduces errors and increases process reliability.

Battery Manufacturing & Assembly

Laser projectors support the precise assembly of battery modules by projecting exact contours — ensuring efficiency and quality assurance in battery production.

Wood

Wood Frame Construction

Laser projectors such as the ZLP2 project CAD data directly onto the work surface, eliminating the need for manual measuring and marking. Workers position wooden elements according to the projections, enabling faster work and minimizing errors.

Glued Laminated Beams & Frames

The laser projectors display the shape of the future beam, allowing the clamps to be positioned in the glue bed. This makes it possible to precisely determine the amount of lamella material required. For further processing of the finished beam on a CNC system, the projector displays the beam’s contour and aligns it with the beam’s actual position. The new position is then transmitted to the machine control system.

CNC Woodworking Center

To optimally position the CNC vacuum suction cups, the laser projector can display both the outline of the workpiece and the contours of the suction cups. Milling edges of workpieces are projected onto the material whenever this helps to prevent damage to the suction cups by the milling tool, facilitate material positioning, or increase material utilization.

LASERS for Industrial image processing or Machine Vision:

Solutions

• Laser projectors with structured lighting for precise 2D & 3D measurements
• Homogeneous lines, grids and patterns for clear evaluation
• Individual configuration of focus, wavelength and aperture angle
• Compatibility with common industrial cameras and vision systems
• Ideal for triangulation, object detection, gap & edge detection

Applications

Profile measurement

Machine vision lasers measure profiles quickly and reliably. This ensures dimensional accuracy and product quality during the ongoing manufacturing process.

Inspection & counting of tiny parts

Machine vision lasers reliably detect and count minute parts in real time. This prevents production errors and ensures stable, consistent quality throughout the process.

Surface control

Machine vision lasers detect even the smallest surface defects in real time. Surface inspection enables the precise detection of cracks, defects, and structures for quality assurance in industrial manufacturing. This ensures quality and increases process reliability in industrial production.

Wheels & Track Control

Machine vision lasers inspect railway wheels and tracks with the highest precision. This allows wear and damage to be detected early, increasing operational safety in rail transport.

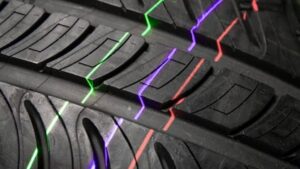

Tire Manufacturing

Modern tire manufacturing is highly complex, with quality, process reliability, and repeatability among the key requirements. To achieve consistently high production accuracy, manufacturers rely on machine vision systems. These are used at various stages of the quality control process, from raw material inspection and early defect detection to the final inspection of the finished tire. For these measurement and inspection processes to deliver reliable results, machine vision systems require a stable, uniform laser line as an optical reference. At the same time, tire production involves harsh operating conditions in which the equipment must perform reliably.

Z LASER Germany provides LASER PROJECTORS, POSITIONING LASERS and LASER PROFILE measurement systems as Line, Dot, Matrix in different wave lengths, different working distances, thicknesses etc., as standard products and also as custom development products.

Online Solutions (Imaging) Pvt Ltd., Chennai India represents Z LASER in India and can provide complete component solutions for any projects based on LASER and all related vision components. Online Solutions can be reached at [email protected] and web site www.onlsol.com
