Our MSIS multispectral imaging systems are turn-key multispectral imaging solutions for situations where controlled spectral lighting is needed.
Each system combines a MSC2-series camera with high power LEDs into a single water and dust-proof enclosure. The LEDs are arranged into 4 or 8 independently controlled channels. Each channel is pulsed to generate high instantaneous light output enabling the system to run cool. The system ships with an external controller for complete stand alone operation. A wide variety of integration options are built-in avoiding the need for custom programming.
Complete multispectral imaging system for a variety of multispectral imaging applications. Includes snapshot multispectral camera and LED lighting in a camera head. Includes a controller with LED drivers, vision computer and software built-in. Operates in headless mode without external peripherals.
Extremely simple to use and works straight out of the box. Simply connect the controller to the camera head, plug in a power source, turn on the system, and press the start/stop button. Images are automatically saved to a removable SD card and sent in real-time to the built-in HDMI port.
We can customize the LEDs and camera to meet specific application requirements.
The system is built to last with high quality anodized aluminium and stainless steel materials. The camera head, controller and cabling are rated IP67 enabling the MSIS to operate in wet environments.
Control the system manually using push buttons on the controller, simple keyboard commands, or through a network using simple text commands. External input lines allow external systems to control the MSIS using only GPIO signals.
Systems can be configured for imaging reflectance, luminescence, or a combination of both methods.
Designed to work with AC or DC power sources. Comes with a universal AC power adaptor. For portable applications, the MSIS can be powered with a wide range of battery voltages and draws less than 50W for the 4-channel version.

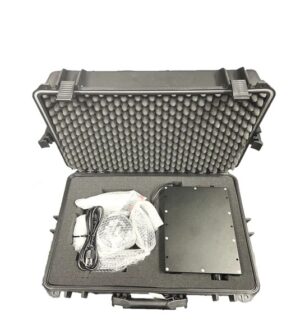

The MSIS is supplied with a full complement of accessories to ensure users have everything they need to get up and running fast. The system comes with cables, a universal power supply, an adjustable mounting bracket, and a rugged and waterproof equipment case.
| Model | Part No | Number of Bands | Band Locations | Pixel/Band |
|---|---|---|---|---|
| ➡RGB-NIR Multispectral Imaging System | MSIS-RGBN-1-A | 4 | 450, 550, 650, 800 nm | 512 x 512 |
| ➡Agricultural Multispectral Imaging System | MSIS-AGRI-1-A | 4 | 580, 660, 735, 820 nm | 512 x 512 |
| ➡8-Band Visible Multispectral Imaging System | MSIS-VIS8-1-A | 8 | 474, 495, 526, 546, 578, 597, 621, 640 nm | 256 x 256 |
| ➡8-Band NIR Multispectral Imaging System | MSIS-NIR8-1-A | 8 | 720, 760, 800, 840, 860, 900, 940, 980 nm | 256 x 256 |
| ➡ Biomedical Multispectral Imaging System | MSIS-BIO-1-A | 4 | 735, 800, 865, 930 nm | 512 x 512 |
| ➡UV-NIR Multispectral Imaging System | MSIS-UN-1-A | 2 | 400, 800 nm | 2048 x 512 |
| ➡Custom Multispectral Imaging System | MSIS-CUS-1-A | 16 | Customer chooses | Depends on Bands |
