A guide to four hands-on imaging, machine vision, AI and agriculture lab kits

Imaging technology becomes easier to understand when learners can work with real cameras, optics, illumination and processing tools—not just slides or simulated examples. Online Solutions’ four lab-kit platforms address different stages of this journey: learning how to acquire and measure images, applying machine vision to inspection tasks, building AI models and deploying them at the edge, and collecting multispectral data for agricultural research.

At a glance: which kit does what?

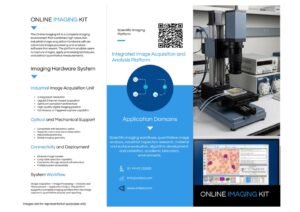

1. Online Imaging Kit — from image capture to measurement

The Online Imaging Kit is a general-purpose scientific and industrial imaging platform built around the complete image-analysis workflow. It combines a 5-megapixel image acquisition unit using Gigabit Ethernet, a GenICam-compliant architecture and a digital imaging pipeline with mechanical support for stable positioning. The brochure describes continuous or triggered capture, network-based image transfer and compatibility with laboratory optics for macro and micro observation.

What learners and researchers can do

• Capture live and stored images, then visualize them with annotations and graphical overlays.
• Organize regions, contours, skeletons and derived objects for structured analysis.
• Apply image processing and quantitative measurement workflows, then use the results in reports or application-specific outputs.
• Develop custom imaging applications using native libraries, .NET components, Python or C#, macro scripting and custom graphical user interfaces.
• Extend the platform, where required, with capabilities such as large-image processing, color classification, 3D image processing, deep-learning extensions, multifocus capture and image stitching.

This kit is the broadest starting point when the objective is to understand image acquisition and analysis as a connected workflow, or to develop a customized imaging application around a specific sample or measurement problem.

2. Online Machine Vision Kit — solving inspection problems

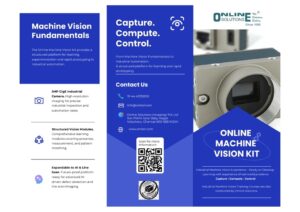

Source brochure visual: Online Machine Vision Kit. Images and configurations are representative.

The Online Machine Vision Kit is designed for structured learning, experimentation and rapid prototyping in industrial automation. The brochure describes a 5-megapixel GigE Vision camera with global shutter and 2448 × 2048 resolution, together with a lens, power supply, cables, interface card, copy stand and lighting accessories. Digital I/O, camera triggering and communication options—including RS-232, Ethernet and PLC integration—support experiments that connect vision to machine-control concepts.

Inspection experiments

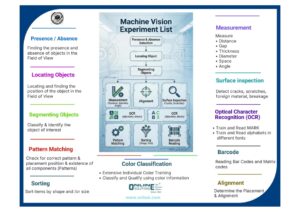

Experiment areas shown in the kit brochure.

The experiment list includes presence/absence detection, object location, segmentation, pattern matching, measurement, surface inspection, optical character recognition (OCR), barcode and matrix-code reading, color classification, alignment and sorting by shape or size. These tasks help learners move from acquiring an image to defining a pass/fail condition or extracting a useful result from it.

How the platform can expand

• Lighting, lens and accessory options for different inspection arrangements.
• A conveyor-based sorting demonstration and control integration concepts.
• An industrial line-scan camera kit for applications where objects move through a field of view.
• An AI module for data-driven defect detection.

This kit is particularly relevant where the learning goal is to translate machine vision fundamentals into factory-style inspection and automation problems.

3. Online VisionAI Lab — from pixels to production AI

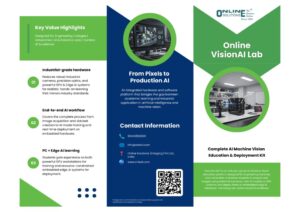

Source brochure visual: Online VisionAI Lab.

The Online VisionAI Lab combines industrial imaging hardware with AI training and deployment resources. The brochure lists an industrial 5-megapixel USB 3 camera and optics, a controlled imaging setup, a GPU training workstation, an NVIDIA Jetson Orin Nano Super edge platform, Neuro-EDU AI training software and runtime, Spinnaker SDK for Windows and Linux, sample datasets and lab exercises.

The end-to-end AI learning path

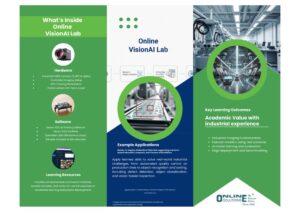

Hardware, software and learning outcomes described in the VisionAI Lab brochure.

• Learn industrial imaging fundamentals and acquire images using a real camera.
• Create and organize datasets from captured images and supplied learning materials.
• Train and evaluate AI models, using appropriate datasets and lab exercises.
• Deploy models on embedded edge hardware and benchmark their runtime behaviour.
• Explore application concepts such as defect detection, object classification, automated quality control and vision-based sorting.

The kit is intended to bridge academic AI learning and practical industrial vision. It gives learners exposure to both model development on a workstation and deployment on a resource-constrained edge device, rather than stopping at model training alone.

4. Online Agriculture Imaging Lab Kit — multispectral plant research

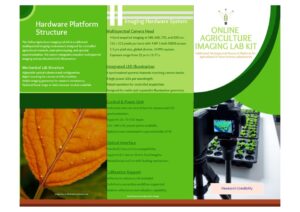

Source brochure visual: Online Agriculture Imaging Lab Kit. Images are illustrative.

The Online Agriculture Imaging Lab Kit is designed for controlled multispectral imaging of plants and crop samples. Its brochure describes a four-band snapshot camera at 580, 660, 735 and 820 nm, with 512 × 512 pixels per band, a 4-megapixel 1-inch CMOS sensor and a stated 5.5 μm pixel size. The camera is paired with synchronized LED illumination matched to the spectral channels, a dedicated control and power unit, and a C-mount optical interface supporting 8.5 mm to 50 mm focal lengths.

Calibration and repeatable capture

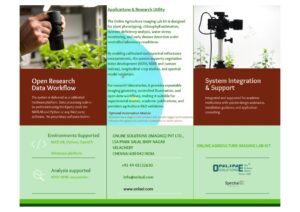

Source brochure visual: applications, data workflow and integration options.

The brochure lists a reflectance reference tile, dark-frame correction and relative-reflectance normalization support. Controlled illumination geometry and repeatable capture are important when comparing samples over time or developing and validating spectral models. The platform is described as an open hardware system: data processing may be performed with third-party tools such as MATLAB or Python, without a proprietary software lock-in.

Research applications described in the brochure

• Plant phenotyping and longitudinal crop studies.
• Chlorophyll estimation and vegetation-index development, including NDVI, NDRE and custom indices.
• Research into nutrient deficiency, water stress and early disease indicators.
• Spectral model development, validation and precision-agriculture R&D.
• Optional batch-capture automation using a motorized linear stage or mini conveyor with encoder-trigger synchronization.

This kit is intended for controlled research and method development. Its outputs should be interpreted using suitable calibration, experimental design and validation; the brochure does not establish a guaranteed level of disease-detection accuracy or field performance.

How the four kits fit together

The kits are complementary rather than interchangeable. The Imaging Kit emphasizes the acquisition-to-measurement workflow; the Machine Vision Kit focuses on inspection tasks and automation; the VisionAI Lab adds dataset preparation, model training and edge deployment; and the Agriculture Imaging Lab specializes in calibrated multispectral capture for plant-focused research.

Conclusion

Hands-on lab platforms help turn imaging theory into practical capability. By giving students, researchers and engineers access to real image acquisition and processing workflows, these kits support learning that ranges from basic image analysis to industrial inspection, edge AI and multispectral agricultural research. The best fit depends on the intended learning outcomes, the applications to be explored and the level of integration required.

About Online Solutions

Online Solutions (Imaging) Pvt Ltd provides imaging and machine vision technology, application support, training, system integration and consultancy. The kits described here are presented as learning and research platforms; exact configurations, specifications and available extensions should be confirmed with Online Solutions before ordering.

Source note

This blog draft is based on the four brochures supplied in the ZIP file: Online Imaging Kit, Online Machine Vision Kit, Online VisionAI Lab Kit and Online Agriculture Imaging Lab Kit. Specifications and optional features are reproduced or paraphrased from those brochures and may be subject to change. All embedded visuals are rendered from the supplied brochures and are included as illustrative source material.
